Product Description

MIX5900: Thermostatic Bar Mixer Shower Valve

General Overview:

• This thermostatic shower mixer has an intelligent constant temperature system, which can automatically balance the cold and hot water pressure to maintain water temperature stable in a quick time. Maximum 1 - 4 ratio hot to cold water input pressure
• The thermostatic mixer accurately controls both water flow and temperature, outlet water temperature range is 20-50°C, thermostat lock at 38°C. Anti-scald valve body is safe for alluses.
• This exposed shower mixer valve is made of high-grade solid brass with a durable chrome finish, which is corrosion-resistant, moisture-proof, anti-rust, long-lasting and easy to clean.
• Features, ceramic disc technology for optimum performance. Assures a lifetime of smooth handle operation, drip-free performance, saving water and effort. Universal round shape and modern design style.
• Inlet size: G 1/2" via 3/4" to 1/2" offsets, outlet size: G 1/2", the thermostat mixer tap is suitable for most thermostaic shower mixing m. Easy to install with instructions, ensure to connect the cold water pipe to the right and the hot water pipe to the left. The distance between the hot water inlet and cold water inlet is: 150mm.

Technical Specification:

• Ceramic Disc Technology (Cartridge: ￠40mm Ceramic)
• Concealed or Surface mounted (surface mounting requires the surface mounting kit  WPL0700)
• Separate Flow & Temperature Controls
• Bottom Outlet
• High & Low Pressure Systems (operating pressure: 1 ~ 5 bar)

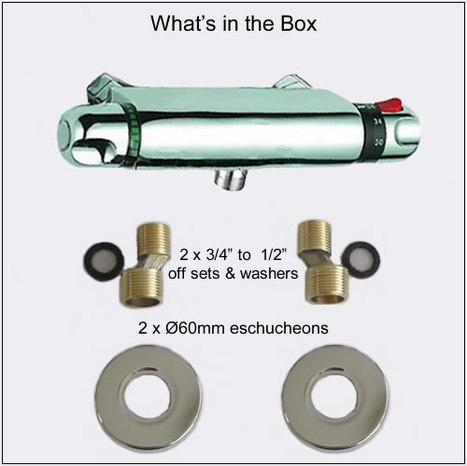

• Includes 2 x 60mm escutcheon plates + 2 x 3/4" ~ 1/2" offsets
• Standard 150mm pipe centres
• 2 Year Manufacturer's Guarantee
• Automatic Shutdown

For additional technical information, dimensions and list of parts please view additional images on this sitre.
