Product Description

Please click on the appropriate link below to view information

Close Coupled Toilet Pan Tech Spec'

Watch Video

Benefits

AS-CCP750R Key features at a glance

Operating Manual

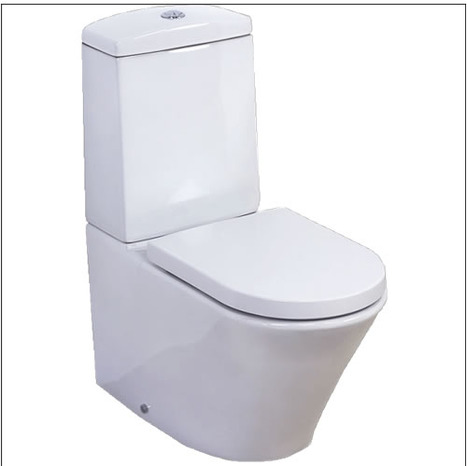

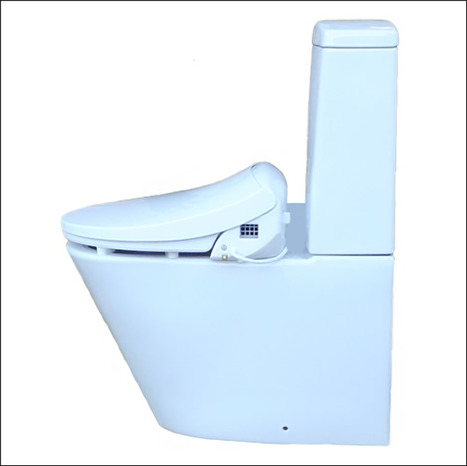

AS-CCP750 Shower Toilet: combination electronic bidet seat and contemporary close coupled toilet in pure white vitreous china

 True contemporary elegance and excellence in design. The is an exquisite combination of the Aqua-Sigma Dib C-750R remote controlled electronic bidet seat perfectly paired with a locally sourced close coupled toilet in pure white vitreous china, an absolute stunning addition to any bathroom or toilet. This closed coupled toilet can be paired with all our bidet toilet seats, the price will be adjusted according to the seat required. Published price is when paired with our Aqua-Sigma Dib C-750R seat, if you wish to order with a different seat please call or email for price.

PLEASE NOTE: We source the closed coupled pan from 2 suppliers, both toilets are representative of the style and shape represented in the main image, dimensions may vary slightly between the two suppliers, if the pan dimensions are critical to your installation please call us and we can advise exact dimensions of the unit we have in stock at the time of calling.

Please view the additional images/ info tab to view more images.

You may also require the following to complete the installation of this unit

• Connection piping to the sewerage waste system
• Suitably compliant 240V power supply to the seat
• A potable water supply to the seat of between 0.6 and 7 bar pressure
• Floor fixing kit for the toilet pan (FFX-100 sold separately in the fittings & accessories section)
• Before Installing if you have any doubts please call 01442 843746 for technical guidance
• VAT Exemption form

This a special order item and takes around 7 working days from receipt of order to arrive

General Specification

Pan and Cistern

• Contemporary modern design
• White finish makes it suitable for any bathroom
• Dual flush cistern to conserve water

Connections:
• Cistern:
As you face the front of the cistern the water inlet is on the right hand side

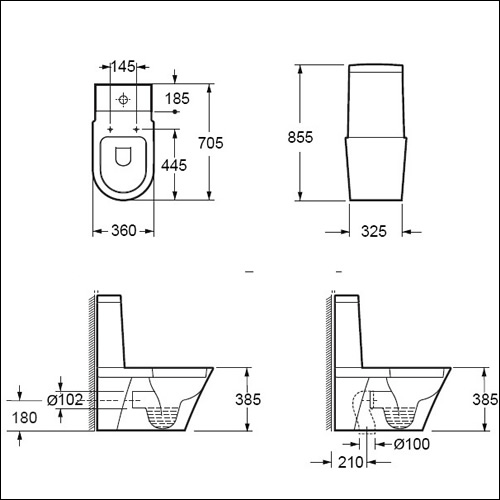

Dimensions:
• Height: 855mm
• Width: 360mm
• Depth: 705mm
• Waste to wall: 210mm

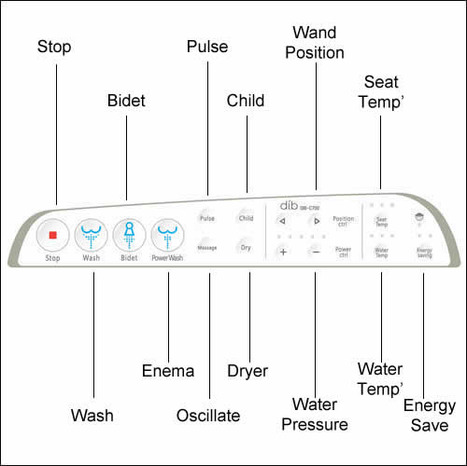

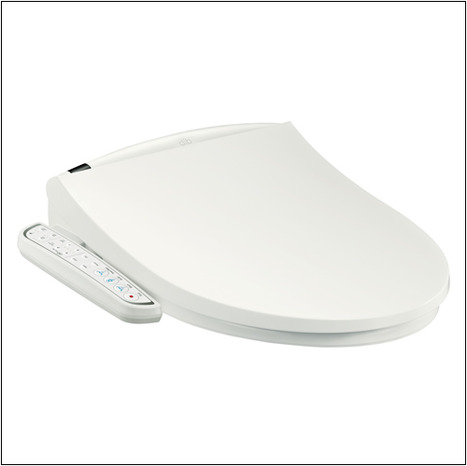

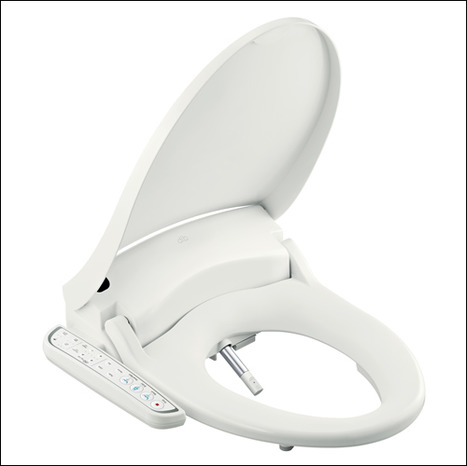

Electronic Bidet Seat

• Posterior cleansing with a variable spray
• Feminine cleansing
• Variable spray (5 settings)
• Adjustable wand position (5 settings)
• Aerated bubble spray
• Kids function (reduced temperature and water pressure settings)
• Pulse and massage function
• Power wash (enema)
• Stainless steel wand, ABS rose
• Continuous or with a variable flow for better cleansing action
• Warm water with variable temperature setting (4 levels)
• Heated seat with variable temperature setting (4 levels)
• Warm air dryer with variable temperature setting
• Deodorizer
• Instant continuous water heating
• Automatic & Intelligent energy saving function
• Soft touch attached control arm
• Automatic cleaning of the wands before and after each use
• Soft closing seat and lid
• Touch activated on/off sensor to prevent over spray
• Self diagnosis
• Easy installation on existing toilets; Adaptable to most standard fixtures
• Colour: Pure white

Technical Specification:

Power rating and energy consumption

• Power rating: AC 230 V, 50 Hz
• Maximum power consumption: 1670 W
• Electrical Safety Protection  (Temp fuse, temp sensor, thermo switch)
• Power cord length: 1.8 m
• Intelligent energy saving function
• Potable Water: Pressure 0.7 ~ 7.5 Bar / Atm

Wash

• Wash water volume: 0.7 l/min
• Bidet water volume: 0.7 l/min
• Power wash water volume: 0.6 l/min
• Pressure control 5 settings
• Water temp' ambient to  38 °C
• Safety Device: Temp Fuse
• Water heater capacity : 1600 W

Heated seat

• Heated Seat: Temperature Adjustable ambient to 42 °C
• Safety Device: Temp Fuse
• Power Consumption: 55 W

Dryer

• Temperature, ambient to 50 °C
• Safety Device: Temp Fuse Bi-metal
• Power Consumption: 250 W

Deodoriser

• The integral fan and activated carbon filter neutralises odours by forcing odours to abandon their bond with outside air and be absorbed in the carbon.
• The seat deodoriser extractor fan starts automatically when seat is occupied.

Warranty

•  1½ year years manufacturers warranty

International Certification

• CE, UL, c/UL Certified
