Product Description

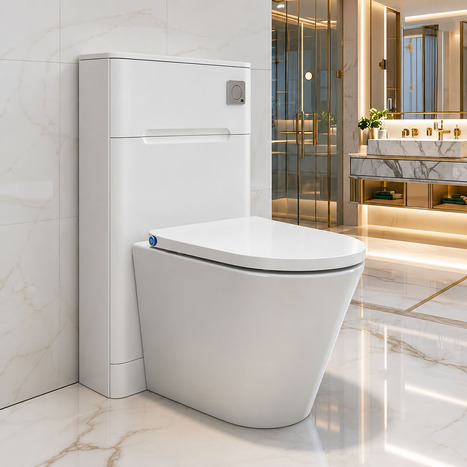

BTC-7035: A combined electronic bidet seat and floor standing back to the wall toilet, slimline casement & dual flush cistern

True contemporary elegance and excellence in design. The is an exquisite combination of our  remote controlled electronic bidet seat   combined with floor standing back to the wall toilet bowl slimline case and Grohe concealed dual flush cistern (not shown in picture)

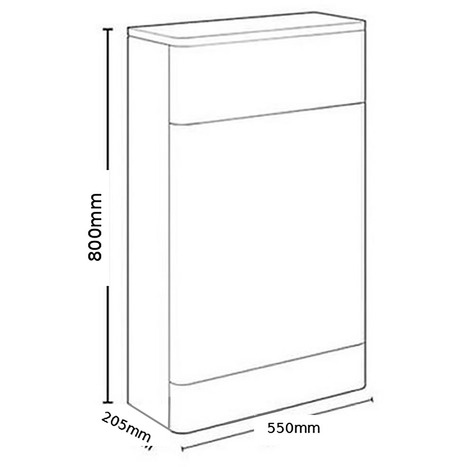

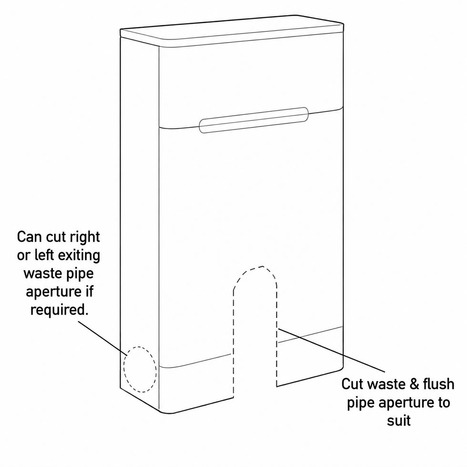

This unit is particularly suited for installation where the soil pipe exits to the left or right as the slimline case can readily be cut on either the left or right-hand side to accommodate side entry soil pipes

Delivered in 2~7 working days from receipt of order depending on your location, There is an additional charge of £39.95 to mainland Europe and for areas in the U.K.  considered "Remote" by our courier, Please click for REMOTE AREA LOCATIONS

Key Features

• Simple to operate via a remote control
• Rear rectal wash
• Feminine wash
• Adjustable water temperature: 5 settings
• Adjustable water pressure: 5 settings

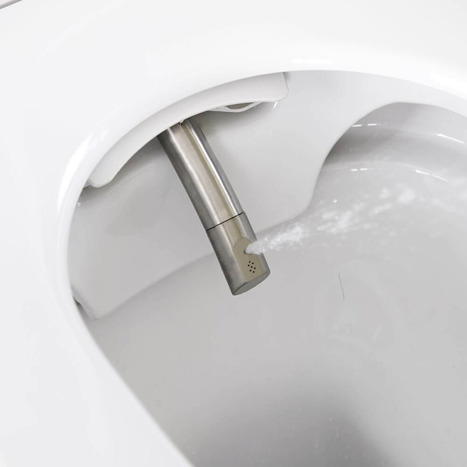

• Adjustable nozzle positioning: 5 settings
• Nozzle oscillation
• Water pulsation
• Warm Air Drying: 5 settings
• Night light
• Soft Close Seat and Lid
• Click HERE to view short video of the varios functions

Delivered in 2~7 working days from receipt of order depending on your location, there is an additional charge of £89.95 for areas in the U.K. considered "Remote" by our courier and £109.95 to Europe and non-mainland U.K. Please click for REMOTE AREA LOCATIONS

Installation Requirements

• Connection piping to the sewerage waste system
• The seat requires a mains water supply of between 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar pressure.
• A fully compliant 10A 230V power source protected by a 30mA RCD (in U.K. to BS7671)
• A concealed cistern such as the Grohe slimline cistern or a Monolith Cabinet and Cistern to enable flushing of the toilet
• Before Installing if you have any doubts please call 01442 843746 for technical guidance. Installation guide can be viewed in the download section of thids product page.

General Specification

1) Toilet pan and cabinet

• Contemporary modern Floor Standing toilet
• Made from High-Quality Vitreous China
• Rimless pan for extra hygiene and ease of cleaning
• Suitable for horizontal & bottom soil pipe connections​
• Net Weight: 35Kg
• Dimensions: 593 x 370 x 445mm
• Cabinet Colour: White finish
• Cabinet:Water resistant engineered wood
• Cistern: 3 ~ 6 ltr dual flush

2) Wash

• • Water Supply Connection: 3/8” BSP
• • Voltage: 220V ~ 240V AC 50 / 60Hz
• • Appliance Power Rating : 1600W
• • Water Feed Pressure: 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar
• • Water Feed Temperature: 4 ~ 35°C
• • Ambient Room Temperature: 4 ~ 40°C
• • Rating: IPX4
• • Flow Rate: 350 ~ 650ml/min
• • Water Spray Temperature: 31 ~ 39°C
• • Wash Cycle Time: 3mins
• • Heating Mode: Mini tank
• • Water Heater: 1200w on maximum power

3) Dryer

• • Maximum Air Speed: 5m/S
• • Dryer Power: 280W
• • Drying Cycle Time: 3mins
• • Drying Air Temperature: 35 ~ 50°C

4) Remote Control

• • Frequency Range: 2460MHz
• • Maximum RF Output Power: -10dBm
• • Requires 2 x CR2032 3v Lithium Button Batteries (Not Included)

5) Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for an easy toilet cleaning.
• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for perfect cleaning, Lid bears our Aqua-Sigma trademark logo.
• Nanosilver technology: applied to the water tank and nozzles give them antibacterial properties.
• Ultrasonic waterproof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
• Toilet pan: pure white vitreous china

6) Safety & Compliance

• Safety in domestic appliances.
• Electromagnetic compatibility.
• Wash: Thermal Fuse, Level Switch, Thermostat
• Dryer: Thermal Cut-off, Thermostat
• CE certified for compliant Installation in the United Kingdom & European Union
• Backflow Prevention: WRAS compliant air Gap to EN1717

7) Manufactures Warranty

• Electronic seat 2 years warranty, one year parts
• Toilet Bowl: 5 years all parts.
• Cabinet: 5 years all parts.
• Cistern: 5 years all parts.
