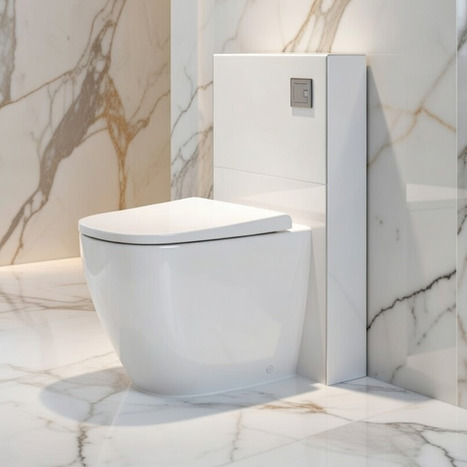

GMF-7235: Japanese Shower Toilet with reduced height monolith cistern cabinet

The GMF-7235 Dual Flush reduced height Monolith Close Coupled Smart Japanese Bidet Shower Toilet is the perfect way to upgrade your bathroom experience. With its sleek design, powerful cleansing features, the GMF-7035 will make your bathroom a more hygienic and enjoyable place to be.

Aqua Lava: Japanese Smart Bidet Toilet:

​The GMF-7235 Dual Flush Monolith Close Coupled Smart Japanese Shower Toilet is a high-quality, comfortable, and easy-to-use toilet that provides a refreshing and hygienic cleansing experience. It features a powerful sprayer that can be used to cleanse your body in a variety of ways, including a posterior cleanse, a feminine cleanse, a front cleanse, and a pulsating cleanse. The GMF-7235 also has a warm air dryer, a nightlight, and a remote control to keep you comfortable and dry. It also has a touchless flush, so you don't have to touch anything to flush the toilet. It is the perfect way to upgrade your bathroom experience.

Key Features

• Simple to operate via a remote control
• Rear rectal wash
• Feminine wash
• Adjustable water temperature: 5 settings
• Adjustable water pressure: 5 settings
• Adjustable nozzle positioning: 5 settings
• Nozzle oscillation
• Water pulsation
• Warm Air Drying: 5 settings
• Night light
• Soft Close Seat and Lid
• Click HERE to view short video of the varios functions

Installation Requirements

• Connection piping to the sewage waste system
• The seat requires a mains water supply of between 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar pressure.
• A fully compliant 10A 230V power source protected by a 30mA RCD (in U.K. to BS7671)
• Before installing, if you have any doubts, please call 01442 843746 for technical guidance. The installation guide can be viewed in the download section of this product page.

General Specification

1) Toilet pan

• Contemporary modern design
• Made from High-Quality Pure White Vitreous China
• Rimless pan for extra hygiene and ease of cleaning
• Suitable for horizontal & bottom soil pipe connections​
• Net Weight: 35Kg
• Dimensions: 593 x 370 x 445mm

2) Wash

• • Water Supply Connection: 3/8” BSP
• • Voltage: 220V ~ 240V AC 50 / 60Hz
• • Appliance Power Rating: 1600W
• • Water Feed Pressure: 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar
• • Water Feed Temperature: 4 ~ 35°C
• • Ambient Room Temperature: 4 ~ 40°C
• • Rating: IPX4
• • Flow Rate: 350 ~ 650ml/min
• • Water Spray Temperature: 31 ~ 39°C
• • Wash Cycle Time: 3mins
• • Heating Mode: Mini tank
• • Water Heater: 1200w on maximum power

3) Dryer

• • Maximum Air Speed: 5m/S
• • Dryer Power: 280W
• • Drying Cycle Time: 3mins
• • Drying Air Temperature: 35 ~ 50°C

4) Remote Control

• • Frequency Range: 2460MHz
• • Maximum RF Output Power: -10dBm
• •Requires 2 x CR2032 3v Lithium Button Batteries (Not Included)

5) Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for an easy toilet cleaning.
• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for perfect cleaning, Lid bears our Aqua-Sigma trademark logo.
• Nano-silver technology: applied to the water tank and nozzles give them antibacterial properties.
• Ultrasonic waterproof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
• Toilet pan: pure white vitreous china.

6)Reduced height Monolith White Tempered Safety glass cistern cabinet with Dual flush

• Ultra-slim cabinet cistern for Floor standing toilets
• Alpine White 8mm tempered glass finish with shatterproof backing safety film
• Brushed Aluminium Side Panels
• Dual  flush 3/6L cistern
• Easy installation and maintenance, all working parts can be accessed from the top panel
• Supports weights of up to 400kg

7) Safety and Compliance

• Safety in domestic appliances.
• Electromagnetic compatibility.
• Wash: Thermal Fuse, Level Switch, Thermostat
• Dryer: Thermal Cut-off, Thermostat
• CE certified for compliant Installation in the United Kingdom & European Union
• Backflow Prevention: Air Gap, WRAS Compliant / EN1717
• Electronic seat 2 years warranty, one-year parts

8) Dimensions

• Height - 822.5mm
• Width - 504mm
• Depth - 143mm

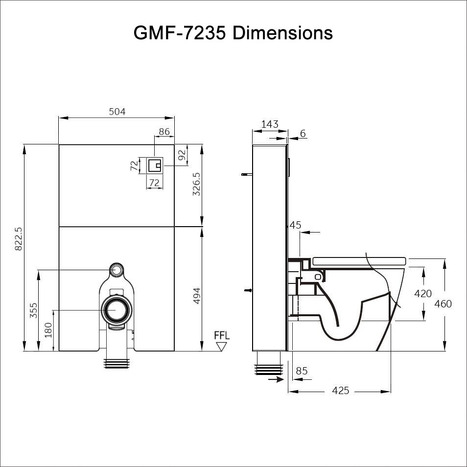

• View the dimensional drawing for additional dimension

Please Note. To achieve full compliance an ‘Approved’ single check valve or some other no less effective back-flow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance. If in any doubt please consult a qualified plumber.

Delivery

Delivered in 2~7 working days from receipt of order, depending on your location, there is an additional charge of £89.95 for areas in the U.K. considered "Remote" by our courier and £109.95 to Europe and non-mainland U.K. Please click HERE to view area considered remote by couriers.

Securely shop now on our 128-bit encrypted web store (or call us on 01442 843746) and upgrade your bathroom with the GMF-7035: Japanese Shower Toilet​.
