Product Description

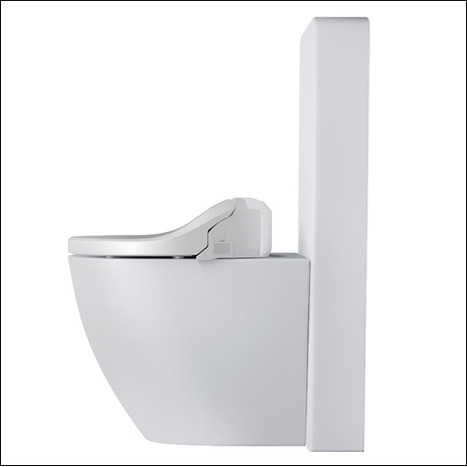

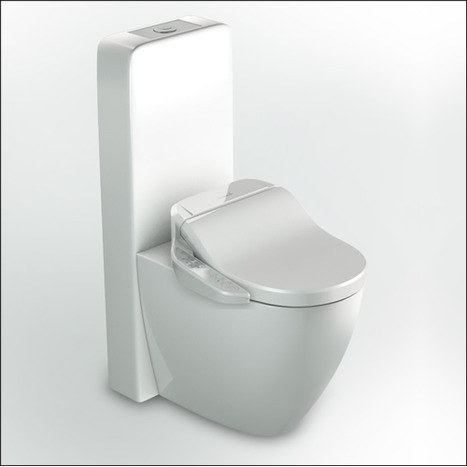

GMF-7235: Shower Toilet:  Combination of electronic bidet seat coupled with the Italian designed and manufactured monolith cistern and floor standing toilet pan in white vitreous china

 True contemporary elegance and excellence in design. The is an exquisite combination of the WRAS approved USPA UB-7235 U style electronic bidet seat (WRAS Approval Number:1309335) perfectly paired with our luxurious  Italian made monolith cistern and floor standing toilet pan in white vitreous china, an absolute stunning addition to any bathroom or toilet. This monolith cistern and floor standing toilet pan can be paired with all our U style bidet toilet seats.

You may also require the following to complete the installation of this unit

• Connection piping to the sewerage waste system
• Suitably compliant 230V power supply to the seat
• A mains water supply to the seat and cistern of between 0.6 and 7 bar pressure.
• Before Installing if you have any doubts please call 01442 843746 for technical guidance

Delivered in 2~7 working days from receipt of order dependent on your location, There is an additional charge of £39.95 to mainland Europe and for areas in the U.K.  considered "Remote" by our courier, Please click for REMOTE AREA LOCATIONS.

General Specification

Monolith Cistern and Pan

• Contemporary modern design
• Dual flush cistern 3/6 litre Flush with Chrome Flush Button
• Integrated cistern
• Cistern and sanitary technology elegantly concealed.
• Minimalist design
• A stylish alternative to a WC with a cistern in front of the wall.
• Simply Easy installation
• Modernising and renovating made easy.
• Innovative design that fits any bathroom.
• Monolith Cistern Specification
• Colour/Finish - Pure white vitreos china makes it suitable for any bathroom
• For floor mounted back to wall toilet bowls
• For mounting on finished floors
• Not compatible for ceramic pans using metal bracketry
• Self-supporting
• Fully insulated against condensation
• Made from High Quality Vitreous China

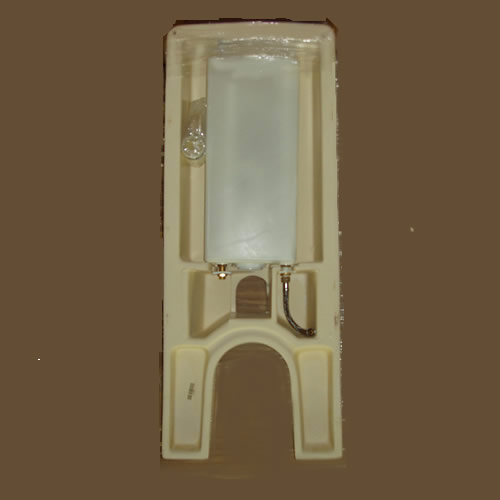

• Suitable for horizontal & bottom soil pipe connections, click HERE to view back of monolith cistern

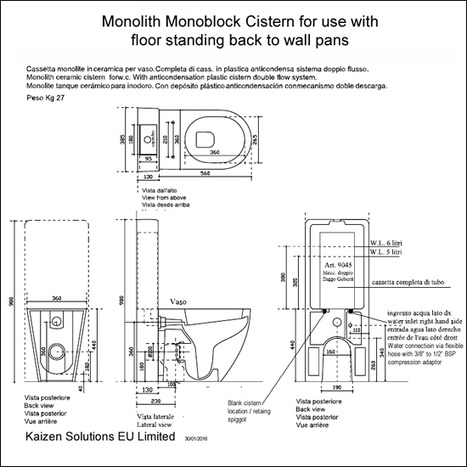

• Monolith Cistern Dimensions W385 x D130 x H980mm
• Monolith / pan Installation guide please click HERE

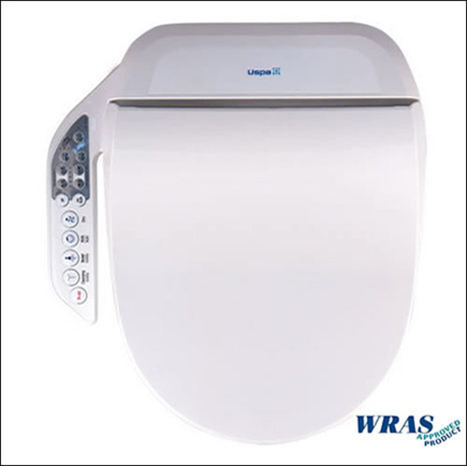

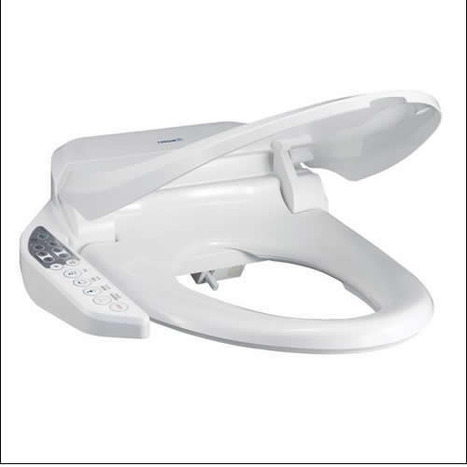

Electronic Bidet Seat

• Made from germ-resistant plastic for maximum hygiene
• Posterior cleansing with a variable spray
• Feminine cleansing
• Variable spray (5 settings)
• Adjustable wands position
• Aerated spray
• Kids function
• “IIP” (Intensive Impulse Pulsation) function
• “Auto” function (hygiene + dryer)
• Jet type: continuous or with a variable flow for better cleansing action
• Warm water with variable temperature setting (3 levels)
• Heated seat with variable temperature setting (3 levels)
• Warm air dryer with variable temperature setting (5 levels)
• Deodorizer
• Continuous water heating
• Intelligent energy saving function

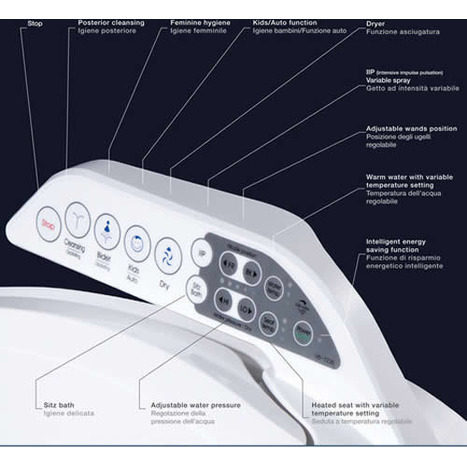

• Controls mounted on the side of the seat
• Automatic cleaning of the wands before and after each use
• Gentle closing seat and lid
• Touch activated on/off sensor to prevent over spray
• Self check
• Easy installation
• Pan pure white china
• Net weight with pan; 48Kg

2. Warm air dryer

• Adjustable (5 levels)
• Power Consumption 280 ~ 333 W
• Safety devices: Temp Fuse

3. Heated seat

• Heated Seat: Temperature Adjustable (3 levels) / 34 °C - 40 °C
• Safety Device: Temp Fuse
• Power Consumption: 55 ~ 65 W

4. Deodorizer

• Automatic start: dedorizer starts automatically when seat is occupied.

5. Safety

• Electricity Safety Protection: 15 mA - GFCI
• Temp Fuse
• IP24 rated

6. Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for an easy toilet cleaning.
• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for a perfect cleaning.
• Nano silver technology: applied to water tank and nozzles give them antibacterial properties.
• Ultrasonic water proof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
• Toilet pan: pure white vitreous china

7. Power rating and energy consumption

• Power rating: AC 230 V, 50 Hz
• Energy consumption: 1660 - 1975 W
• Power cord length: 1.5 m
• Intelligent energy saving function
• Potable Water: Pressure 0.5 ~ 7.4 Atm

5. Warranty

•  2 years manufacturers warranty

6. International Certification

• CE, WRAS, EMC, JET, Dentori, K, ISO9001
