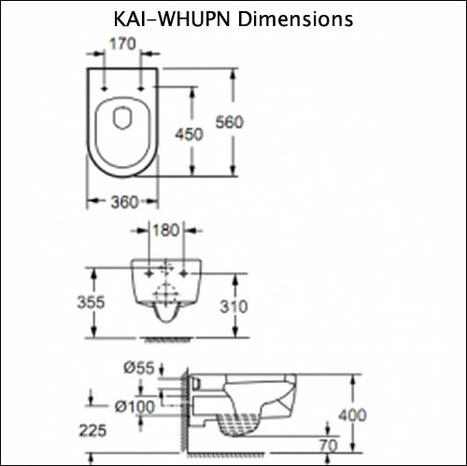

Toilet Pan Dimensions

Watch Video

Benefits

Operating Manual

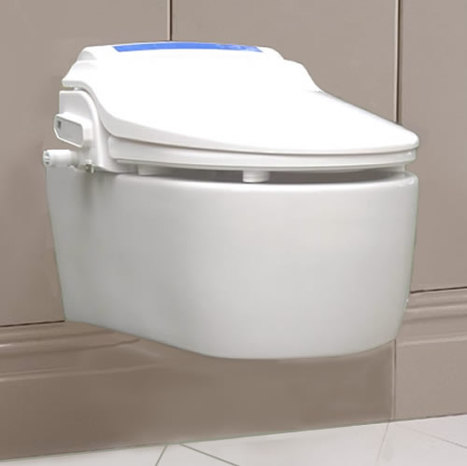

KAI-WHU01R Combined wall hung toilet and electronic bidet.

We have paired our KAI-WC24R round style remote controlled bidet seat and a contemporary wall hung toilet bowl manufactured and supplied by one of Europe's premier sanitary ware manufacturers. Crafted from Grade A vitreous china to provide a durable, non-porous toilet pan with a hard, pure white glossy finish. Click HERE for toilet pan fitting guide.

You may also require the following to complete the installation of this unit

• A concealed wall frame and cistern of your choosing, you may be interested in this wall frame and cistern combination, to view details click HERE
• Connection piping to the sewerage waste system
• Suitably compliant 240V power supply to the seat
• A potable water supply to the seat of between 0.6 and 7 bar pressure
• Before Installing if you have any doubts please call 01442 843746 for technical guidance

Please view additional images and scroll through the images for additional information

Delivered in around 5 working days from receipt of order to arrive

 1. Nozzel Functions

• Cleansing and bidet nozzle: One nozzle to provide posterior cleaning for every one and bidet cleaning to enhance feminine hygiene.
• Swinging movement: the cleaning area is wider thanks to the automatic back and forth movement of the nozzle.
• Enema function
• Nozzle position adjustment: 3 settings available to make cleansing suitable for each user.
• Water temperature adjustment: 3 settings available (room temperature ~ 40°C) to make suitable for every one's preferences.
• Water pressure adjustment: 3 settings available.
• Self-cleaning nozzle: cleans nozzle automatically before and after use.
• Wireless remote control
• Water tank capacity: 0.8 litre

2.Warm air dryer

• Air temperature  (room temperature ~ 60°C)

3. Heated seat

• Seat temperature adjustable: 3 settings available (room temperature ~ 40°C)
• Inner bowl nightlight, automatic illumination when room light off or after dusk.
• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for a perfect cleaning.

4. Deodorizer

• Automatic start: dedoriser starts automatically when seat is occupied.

5. Safety

• Occupied seat sensor: all the functions will stop when the seat is not occupied.
• Seat Safety Device
• Temperature inductor,temperature fuse
• Leakage Protector
• Ancillary Safety Devices

6. Materials

• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.

7. Power rating and energy consumption

• Power rating: AC 230 V, 50 Hz
• Energy consumption: 660 W

9. International Certification

• CE, RoHS and UL
