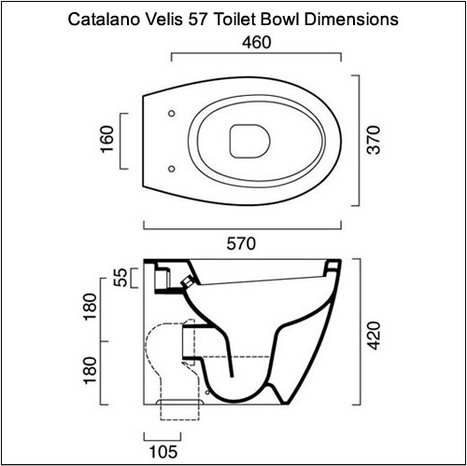

Velis 57 BTW Toilet Pan Tech Spec

360 DegreeView Toilet and Seat

Watch Bidet Video

Comparison Chart

Benefits

USPA Full Range Catalogue

Operating Manual

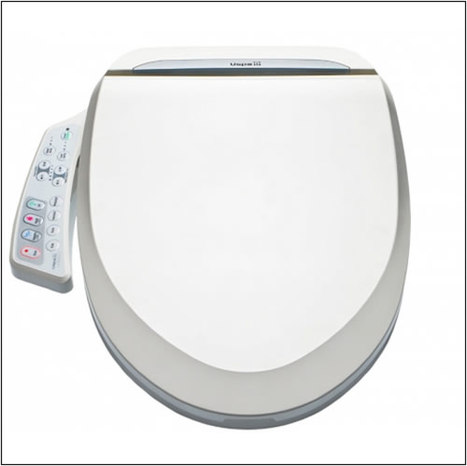

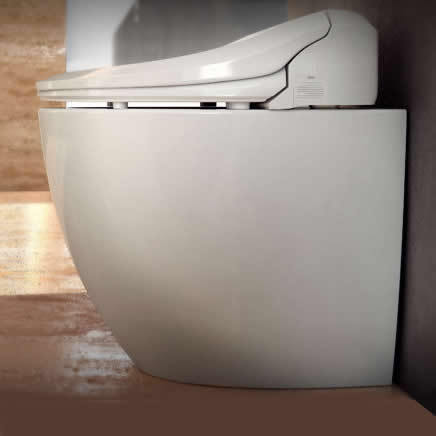

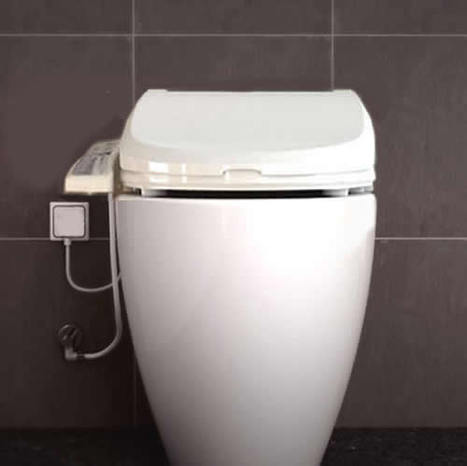

VIS6000: A combination electronic bidet seat and Italian floor standing back to the wall toilet bowl.

True contemporary elegance and excellence in design. The is an exquisite combination of the WRAS approved USPA UB-7235L elongated electronic bidet seat perfectly paired to the Velis 57 back to wall floor standing toilet bowl, designed and manufactured in Italy by the leading Italian company Ceramiche Catalano Absolutely stunning!

Please view the additional images / info tab to view more images. You may also visit the Ceramiche Catalano website by clicking this link "Ceramiche Catalano "

You may also require the following to complete the installation of this unit

• A concealed water cistern of your choosing, or you may be interested in purchasing this unit, click HERE to view details.
• Connection piping to the sewerage waste system
• Suitably compliant 240V power supply to the seat
• A potable water supply to the seat of between 0.6 and 7 bar pressure
• Before Installing if you have any doubts please call 01442 843746 for technical guidance

This a special order item and takes around 7 working days from receipt of order to arrive

1. Key Features

• Made from germ-resistant plastic for maximum hygiene
• Posterior cleansing with a variable spray
• Feminine cleansing
• Variable spray (5 settings)
• Adjustable wands position
• Aerated spray
• Kids function
• “IIP” (Intensive Impulse Pulsation) function
• “Auto” function (hygiene + dryer)
• Jet type: continuous or with a variable flow for better cleansing action
• Warm water with variable temperature setting (3 levels)
• Heated seat with variable temperature setting (3 levels)
• Warm air dryer with variable temperature setting (5 levels)
• Deodorizer
• Continuous water heating
• Intelligent energy saving function
• Controls mounted on the side of the seat
• Automatic cleaning of the wands before and after each use
• Gentle closing seat and lid
• Touch activated on/off sensor to prevent over spray
• Self check
• Easy installation
• Color: Pure white

2. Warm air dryer

• Adjustable (5 levels)
• Power Consumption 280 ~ 333 W
• Safety devices: Temp Fuse

3. Heated seat

• Heated Seat: Temperature Adjustable (3 levels) / 34 °C - 40 °C
• Safety Device: Temp Fuse
• Power Consumption: 55 ~ 65 W

4. Deodorizer

• Automatic start: dedorizer starts automatically when seat is occupied.

5. Safety

• Electricity Safety Protection: 15 mA - GFCI
• Temp Fuse
• IP24 rated

6. Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for an easy toilet cleaning.

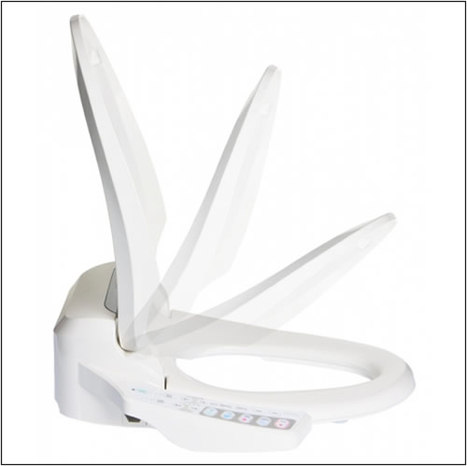

• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for a perfect cleaning.
• Nano silver technology: applied to water tank and nozzles give them antibacterial properties.
• Ultrasonic water proof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
• Toilet pan: pure white vitreos china

7. Power rating and energy consumption

• Power rating: AC 230 V, 50 Hz
• Energy consumption: 1660 - 1975 W
• Power cord length: 1.5 m
• Intelligent energy saving function
• Pottable Water: Pressure 0.5 ~ 7.4 Atm

5. Warranty

•  2 years manufacturers warranty

6. International Certification

• CE, WRAS, EMC, JET, Dentori, K, ISO9001
• Please Note. To achieve full WRAS compliance an ‘Approved’ single check valve or some other no less effective backflow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
