Product Description

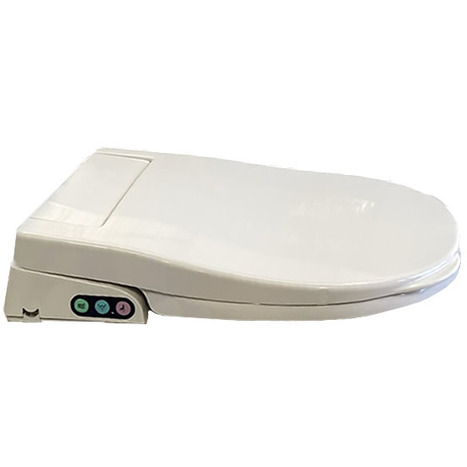

Aqua-Sigma UB-6600-SE Japanese Style Wash and Dry Bidet Shower Toilet Seat

Supplied in a pure white finish, the seat that washes and dries you, the ultimate in elegance, luxury, hygiene and comfort. Pure white Japanese-style Wash and Dry Shower Toilet Seat.

Before purchasing, please ensure you check the toilet measurement and Installation guide to ensure the seat will fit your toilet bowl by clicking HERE

View the Model Comparison Chart to compare and evaluate the individual features of all models.

Key Features

• Compatible with most UK U-shaped toilet bowls with bowl length > 505mm
• 5 rear wash positions
• Feminine wash
• 5 spray intensity settings (approx. 0.6L-1L per minute)
• 1-2 minute wash cycles
• 4 spray modes: Steady, Pulsating, Oscillating, Pulsating + Oscillating
• High power, 1500W instantaneous water heater
• 2-minute constant wash cycle
• 1 minute gradual cooling wash cycle
• 6-stage temperature control (approx. 31-39 degree C)
• Turbo dryer
• 350W dryer
• 3-minute standard drying cycle at max permitted water pressure
• 6 dryer temperature settings (40-52°C approx.)
• 5 adjustable fan speed settings
• Side entry water supply
• Rear central power cord for electrical connection either to the left or right of the unit
• Self-cleaning function ensures the nozzle and surrounding area are hygienic
• Pre and post wash nozzle cleaning
• Automatic water purge if not used for 72 hours
• Night light helps users with sight loss or dementia locate the toilet in the dark/dimly lit conditions
• Quiet and efficient operation promotes user dignity whilst providing a reliable experience
• Quick release seat and lid makes cleaning, maintenance, or even moving property easier
• Soft close seat and lid is slower, quieter and therefore safer for users
• Adjustable seat stability lugs provide robust stability against side shear when side transferring
• Strong load limit of 150kg/23.5st ensures the bidet is suitable for a wide variety of users
• Low-pressure mode requires just 0.2 (static)-10 (static) bar to achieve a flow rate of 0.45L-0.65L per minute, with a maximum 25 second restart period
• Supplied with a 2 year manufacturer's warranty

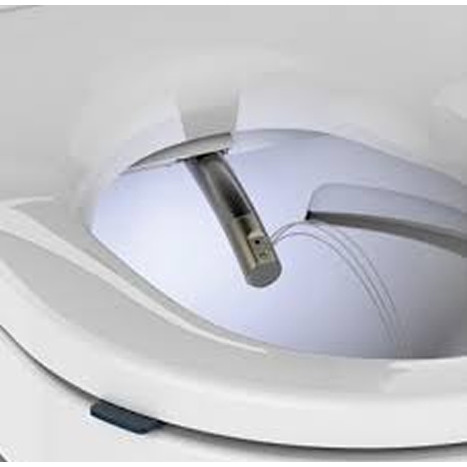

• Click HERE to view a demo of how the nozzle extends to was you with warm water

Technical Specification

• Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077
• Protection class: I
• Protection degree: IPX4
• Nominal voltage: 230 V AC
• Mains frequency: 50 Hz
• Power consumption: 2000 W
• Power consumption standby: ≤ 0.5 W
• Flow pressure: 0.5-10 bar
• Operating temperature: 5-40 °C
• Water temperature, adjustment range: 34-40 °C
• Calculated flow rate: 0.03 l/s
• Minimum flow pressure for calculated flow rate: 0.5 bar
• Spray time: 30-50 s
• Maximum load WC seat: 150 kg

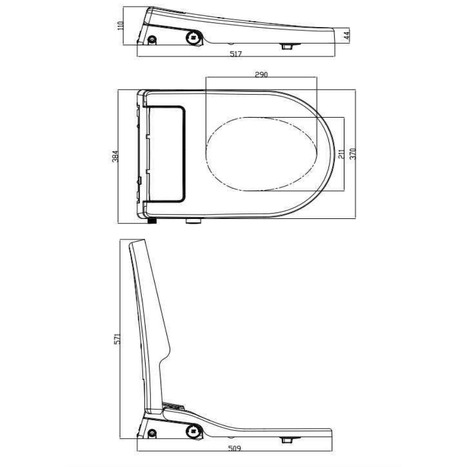

Product Specification

• Bidet Seat Shape D / U -Shaped
• Bidet Seat Height 111mm
• Bidet Seat Width 370mm
• Bidet Seat Length 517mm
• Material Plastic
• Colour White
• Brand Aqua-Sigma
• Style Modern
• Market Domestic
• EAN Barcode 710882460648

Installation Requirements

• A fully compliant power source to the seat (in U.K. to BS7671) and located within 1.5m of the center line of the toilet (230V 50Hz 1.7Kw max) suggest to be located on the right-facing pan.
• A mains water supply of between 0.07 Mpa (0.7 bar) and 0.74 Mpa (7.4 bar) pressure. The inlet for the seat water supply is on the left, facing the toilet pan.
• Before installing, if you have any doubts or require further technical information, please call 01442 843746. Click HERE to view a video of a typical seat installation guide.

Warranty:

2 years manufacturers warranty parts and labour,

International Certification

CE, UKCA, WRAS, EN 1717, EN 62233, EN 60335, EN 13077.

Please Note. This unit contains an integral  AB airgap providing back-flow compliance to WRAS category 5 protection, as the pipework leading to the airgap may not be of food grade materials, to achieve full WRAS compliance, an ‘Approved’ single check valve or some other no less effective backflow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
