Product Description

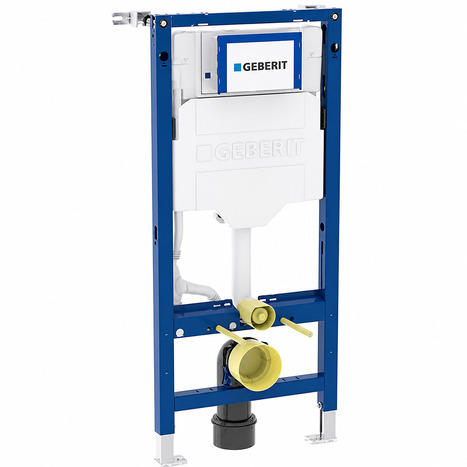

Geberit Duofix Frame 1120mm & Sigma Cistern 120mm for Wall Hung WC 1120mm - 111.383.00.6

The Geberit 1120mm adjustable height Frame & Cistern for all Wall-Hung WC and bidet toilets offers a robust and reliable solution for modern wall-hung toilet installations

This Geberit 1120mm adjustable height Frame and cistern system is designed for standard-height installations in drywall oir "boxed-in" construction, providing a sleek, modern aesthetic and outstanding functionality for years to come

Designed for durability and ease of maintenance, this frame system is a product of extensive research and development in concealed cistern systems.

What are the Geberit Dufix Frame Stand Out Features?

Application purposes:

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For installation in part or room-height Geberit Duofix system walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0-20 cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame with ª 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0-20 cm
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Scope of Delivery:

• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ª 90 mm
• Connection bend 90¬ made of PE-HD, ª 90 mm
• Adaptor socket made of PE-HD, ª 90 / 110 mm
• 2 protection plugs
• 2 threaded rods M12
• Fastening material
• Product Code: 111.383.00.6

Warranty

Manufacturers' 5-year warranty.
