Product Description

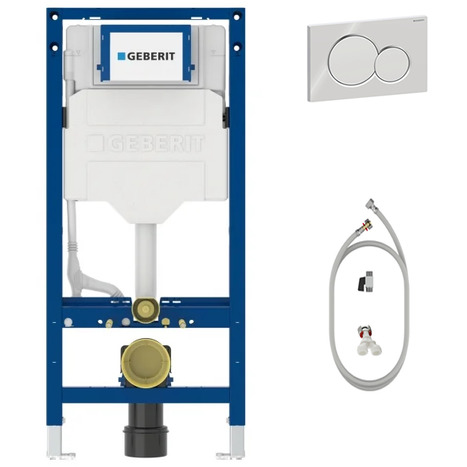

Geberit Sigma WC Toilet Frame 1120mm + Dual Flush Plate+ Connection set Bundle

This next-generation redesigned Geberit Sigma 1120mm H Frame & Cistern for Wall-Hung W's combines 60 years of engineering expertise and installer feedback to deliver you an enhanced performance, faster installation, and superior sustainability, This bundle is supplied  adual flush pl;ate and water connection set ideally suited for installation of bidet toilets requiring a water feed and power connection

Bundle Contents

• 1 x Geberit Sigma 1120mm WC Toilet Frame Part No: 111.383.00.6
• 1 x Geberit Sigma 120mm Pre-Wall Cistern
• Geberit Water supply connection R 1/2" with integrated angle stop valve and hand wheel
• Geberit Protection box for service opening
• 2 x Geberit wall anchors
• Geberit Connection set for WC, 90mm
• Geberit PE-HD Connection bend 90mm
• Geberit PE-HD adaptor socket 90/110mm
• Geberit Fastening and protection materials
• Geberit Sigma01 Dual Flush Plate - Gloss/Matt Chrome
• Water Connection Set





WC Frame Features

• Designed for Wall-Hung WC's in part- or room height pre-walls or partition walls
• For wall-hung W's with projections up to 70 cm
• Over 30% quieter than before
• Optimised Hydraulics with upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large)
• Compatible with WC pans up to 700mm deep, ideal for futureproofing your bathroom
• Up to 10x better flush performance with TurboFlush-ready compatibility (when combined with a Geberit TurboFlush pan)
• Pull-Out Side Fastening Plate for faster vertical stud mounting
• Hexalobular Screws offer tool flexibility with better grip for power tools
• Alternative Wall Anchor Positions accommodate tricky wall conditions like pipes or cables
• Adjustable Pipe Bracket for stress-free connection bend installation
• Additional Laser Markings on the frame for accurate centre positioning of the threaded rods and connection bend
• Leg Support Adjustable to 25cm, ideal for modern, high floor constructions
• Long-term spare parts support (50 years)
• WRAS Approved
• Supplied with a 10 year guarantee ( 50 year on spare parts ) from the manufacturer

Cistern Features

• Pull-out vertical plate for lateral fastening above the element on metal or wood studs
• Alternative fastening points for wall anchors & rotating foot plates
• Connection bend can be mounted without tools at different depths, adjustable range 45mm
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection box can be cut to length, protects against moisture and dirt
• With conduit feed pipe for Geberit AquaClean shower toilets
• Fastening for electrical connection and Power & Connect Box
• Compatible with 130+ Geberit Sigma flush plate finishes & styles
• Strength-tested to bear 400kg of weight when combined with Geberit Wall-Hung Toilets

Parts Supplied

• Geberit Sigma 1120mm WC Toilet Frame Part No: 111.383.00.6
• Geberit Dual Flush Plate - Gloss/Matt Chrome Part N0: 115.770KA
• TOTO / Geberit water Connection set Part No: SP10695UN
