PRV1000 water pressure reducing valve

£33.95
PRV1000 water pressure reducing valvePRV1000 water pressure reducing valve

Still got a question?

Call 01442 843120 for some friendly help and advice.

PRV1000 water pressure reducing valve

£33.95

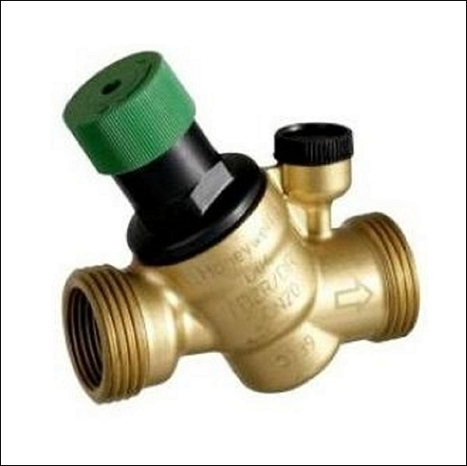

PRV1000 Water pressure reducing valve

Pressure reducing valve is designed to protect appliances against excessive supply pressures. By installing a pressure reducing valve, water consumption can be drastically reduced; water flow noise and over-pressurisation damage is avoided.
Connection via 1/2" BSP Male thread or 3/4" BSP Female thread
To view additional images and information, click on the image to the left which will the load main page where more detailed information is available. Postage is free with in U.K. & from £4.95 to other countries dependent on location.

Out of stock

Free UK delivery in 2-5 days

Secure shopping

International
delivery available

Product Description

PRV1000 Water pressure reducing valve

Application

Pressure reducing valves of this type protect household water

installations against excessive pressure from the supply. They

can also be used for industrial or commercial applications within

the range of their specification.

By installing a pressure reducing valve, pressurisation damage is

avoided and water consumption is reduced.

The set pressure is also maintained constant, even when there is

wide inlet pressure fluctuation.

Reduction of the operating pressure and maintaining it at a

constant level minimizes flow noise in the installation.


Special Features

• Compact construction

• The adjustment spring is not in contact with the potable water

• Outlet pressure adjustable with green adjustment knob

• Inlet pressure balancing - fluctuating inlet pressure does not

influence outlet pressure

• Meets KTW recommendations for potable Water

Range of Application


Technical Data

Medium Water

Inlet pressure max. 16 bar

Outlet pressure 1.5-6 bar adjustable

Installation position Horizontal and vertical installation position

possible

In vertical installation position spring

bonnet with adjustment knob facing

upwards

Operating temperature max. 40°C accord. to DIN EN 1567

max. 70°C (max. operating pressure

10 bar)

(WRC approval up to 23°C)

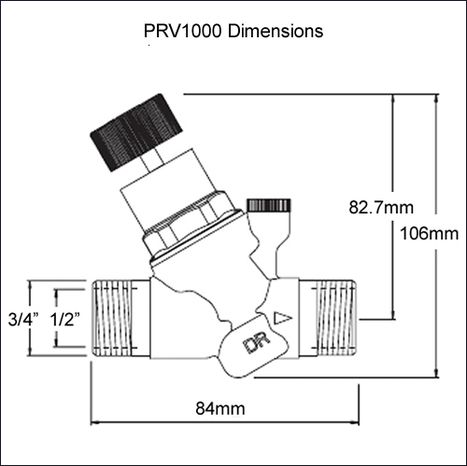

Connection via 1/2" BSP Male thread or 3/4" BSP Female thread

Minimum pressure drop 1 bar
