Product Description

TOTO RP Rimless Close Coupled WC with Soft-Close Seat

The TOTO RP Rimless Close Coupled WC combines contemporary design, advanced hygiene features and future WASHLET compatibility in one refined toilet package. Supplied complete with the RP ceramic pan, close coupled cistern, matching soft-close seat and FlexCover, it is ideal for customers wanting a premium TOTO WC with the option to upgrade to a WASHLET at a later date.

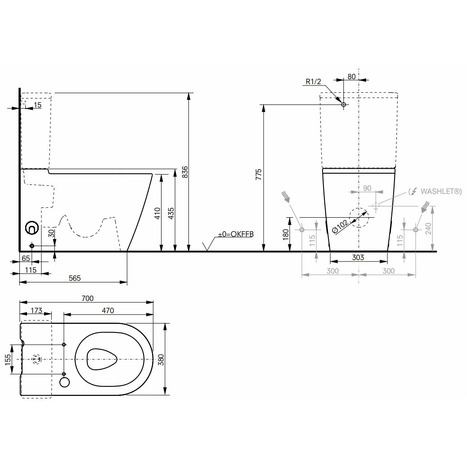

The RP features clean lines, a modern D-shaped bowl, slimline seat profile and neatly integrated ceramic cistern. Its close coupled design makes it suitable for straightforward bathroom refurbishments where a wall-hung frame or concealed cistern may not be practical. Approximate dimensions are 380mm wide x 700mm deep x 836mm high with cistern, with the ceramic pan measuring 380mm wide x 700mm deep x 438mm high.

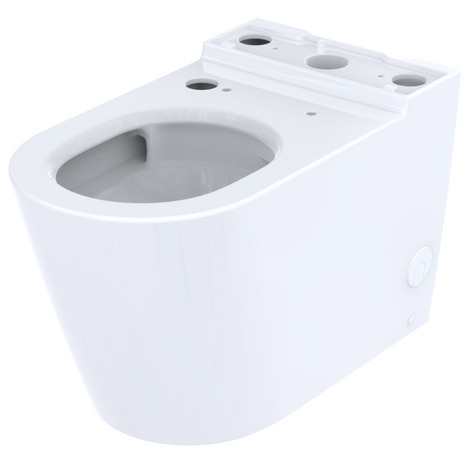

A key benefit of this model is its WASHLET-ready design. Concealed access points allow for future water and electrical connections, enabling later installation of a TOTO RG or RG Lite WASHLET seat when used with the appropriate close coupled connection set. When installed as a standard toilet, the supplied FlexCover neatly conceals the WASHLET connection openings for a clean, finished appearance. Compatible WASHLET models include the RG Lite TCF34170GEU and RG TCF34270GEU.

For hygiene and easy maintenance, the RP includes TOTO’s rimless bowl design, removing the traditional hidden rim where dirt, limescale and bacteria can collect. This is combined with TOTO’s TORNADO FLUSH system, which creates a powerful circular flow of water to clean the bowl efficiently, quietly and with reduced splashing. The RP uses a water-saving dual flush of 3 / 4.5 litres.

The ceramic pan is finished with TOTO’s CEFIONTECT glaze, an exceptionally smooth surface designed to make it harder for waste, mould and bacteria to adhere. Together with the rimless bowl and Tornado Flush, this helps keep the toilet cleaner for longer and reduces the need for harsh cleaning chemicals.

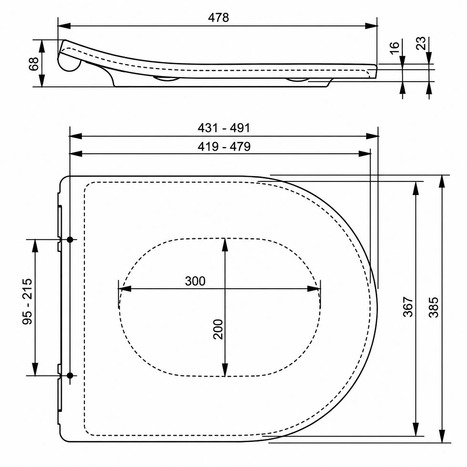

The included RP soft-close seat complements the shape of the ceramic and provides quiet, controlled closure. The toilet also features a horizontal outlet, ceramic cistern and conventional close coupled layout for practical installation. Openings on both the left and right sides of the ceramic allow for use of an external angle valve where required.

TOTO RP Rimless Close Coupled WC Key Features at a glanse

• Complete TOTO RP close coupled WC package
• Supplied with RP ceramic pan, close coupled cistern, RP soft-close seat and FlexCover
• WASHLET ready for future upgrade to TOTO RG or TOTO RG Lite
• Concealed access points for future water and power connection
• FlexCover provides a neat, finished appearance when used as a conventional toilet
• Rimless bowl design for easier cleaning and improved hygiene
• TOTO Tornado Flush for powerful, efficient bowl cleaning
• CEFIONTECT glaze helps prevent dirt, waste and bacteria from adhering to the ceramic
• Water-saving dual flush: approximately 3 / 4.5 litres
• Horizontal outlet
• High-quality white ceramic construction
• Elegant D-shaped design with slimline soft-close seat
• Suitable for modern bathrooms, renovations and retrofit installations

Technical Information TOTO RP close coupled WC

• Product type: Close coupled WC
• Pan product code: CW561Y#XW
• Compatible ceramic cistern: SW561DY#W
• Compatible WASHLET models: TOTO RG Lite TCF34170GEU / TOTO RG TCF34270GEU
• WASHLET connection set: TCA567, where required
• Pan dimensions: 380mm W x 700mm D x 438mm H
• Overall height with cistern: approximately 836mm
• Material: Ceramic
• Colour: White
• Outlet: Horizontal
• Flush system: Washdown with TOTO Tornado Flush
• Flush volume: 3 / 4.5 litres
• Technologies: Rimless, CEFIONTECT, Tornado Flush, Water Saving
• Seat: Matching RP soft-close seat
• Upgrade feature: FlexCover for future WASHLET installation

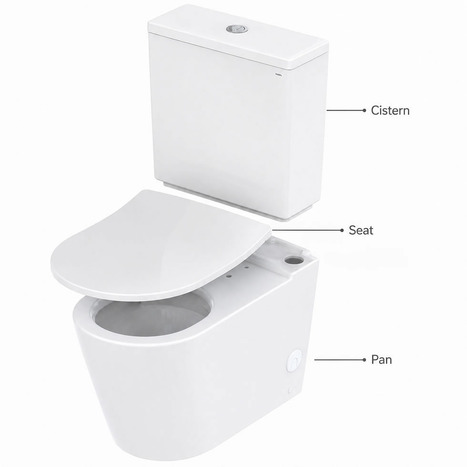

Parts Supplied

• TOTO RP close coupled Pan (CW561Y#XW)
• TOTO RP close coupled Cistern (SW561DY#W)
• TOTO RP Soft Close Seat (TC513Q)

TOTO RP close coupled WC Installation Requirements

• Connection to the sewerage system
• Mains water supply (Working pressure: 1.0 - 10 bar, recommended 3-5 bar)
• If you have questions or need technical support, call us at 01442 843746.

TOTO RP close coupled Installation video

• TOTO RP close coupled WC Installation Video

International Certification

Certified UKCA, CE, WRAS Compliant,  and EN 13077.

Warranty

Manufacturer's 2-year warranty.
