Vitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toilets

£384.00
Vitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toiletsVitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toilets

Customer Reviews (3)

Write a Review

On average our customers rate this product 5 out of 5.


Vitra concealed cistern WC frame & auto flush bundle

Review by on 01st August 2021

The whole process of ordering and delivery was semless. Lucas, was very helpful throughout the process.
The bundle was exactly as described. We ordered two, one has been partially installed and looks to be of the highest quality. Would use bidet-shower.co.uk again.


My cloakroom project...

Review by on 24th July 2021

Wanting to update our downstairs cloakroom i decided to get in two separate professional bathroom installers quotes, shock time both very expensive so no go..
So turning to an independent plumber, i went about buying all the goods I needed myself and fortunately I came across kaizen solutions EU limited to purchase my wall hung toilet and frame not knowing much about loo's wasn't a problem because Lucas was always on the other end of the phone he was very helpful and polite and with his help got the loo i wanted nothing was to much trouble for him and delivery was bang on so thanks Lucas and I would definitely this company...


Great service

Review by on 25th April 2021

What an excellent service. I was able to speak to Lucas from the team and he has handled all the components of this delivery as things were put together and Sri I g at different. I cannot express how grateful I am. I no very little about what I was ordering but I was totally helped and supported in getting the best product and deal.


Still got a question?

Call 01442 843746 for some friendly help and advice.

Vitra Concealed Cistern WC Frame & Auto flush bundle for wall hung toilets

£384.00

Vitra Concealed Cistern WC Frame for Wall Hung Toilets with Loop T Infrared Electronic WC Flush and Electronic servo mechanism

Ideally suited to the VitrA V Care Essential and Comfort wall hung bidet toilet.
Front actuation with infra red photo cell flush plate.

In stock

Free UK delivery in 2-5 days

Secure shopping

International
delivery available

Product Description

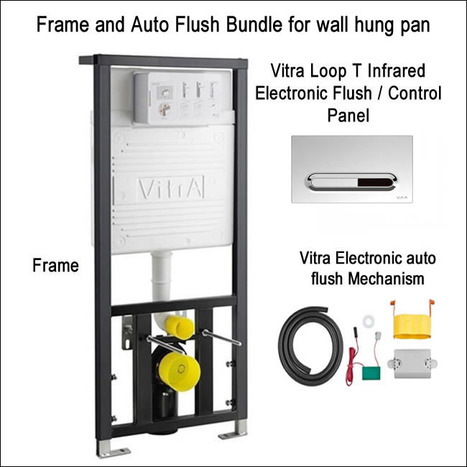

VitrA Wall hung toilet support frame with auto flush bundle:

This bundle provides frame, dual flush plate with infra red detection and electric actuator mechanism, all the parts required for installing a wall hung pan with automatic flushing, Ideally suited to the VitrA V Care Essential and Comfort wall hung bidet toilets.  Front actuation, with Vitra Loop T Infrared Electronic Control Panel WC Flush Plate. The infra red cell senses presence in the close proximity of the flush plate, a presence of between 6 ~ 40 seconds will operate a half flush, presence detection greater than 40 seconds will give a full flush

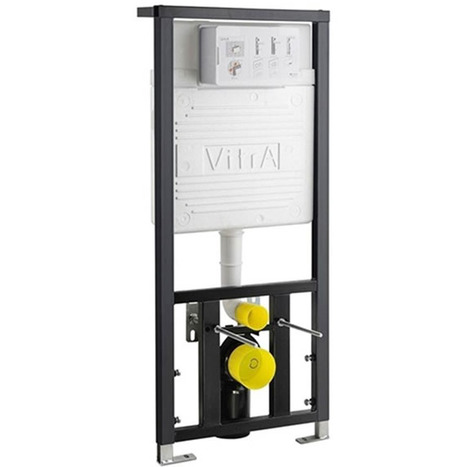

Frame specification:

  • Suitable for modern wall hung WC pans with 18 /23 cm pan fixings
  • Installation type: rapid ;Installation (front wall: light weight construction-gypsum plate, back wall: brick
  • 12cm frame depth.
  • Working Pressure: 0.5 - 10 Bar (recommended 3-5 Bar)
  • Water Saving
  • Strength and Stability, designed to support weights of up to 400kg.
  • Regular frames can be used in solid wall, stud wall and double stud walls
  • Control system: electronic and mechanic control
  • Water capacity: 3-6L (adjustable)
  • Height: 1100 / 1270 mm
  • Width: 490 mm
  • Depth: 145 / 170 mm
  • 5 year, Full VitrA Manufacturer's Warranty

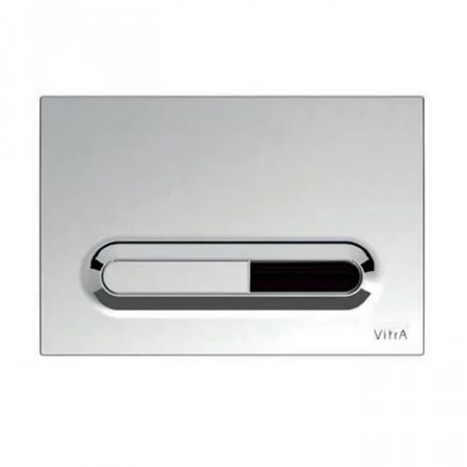

Vitra Loop T Infrared Electronic Control Panel WC Flush Plate:

  • Vitra Loop T Infrared Electronic Control Panel WC Flush Plate
  • Chrome Plated
  • Electronic operation
  • Dual flush control

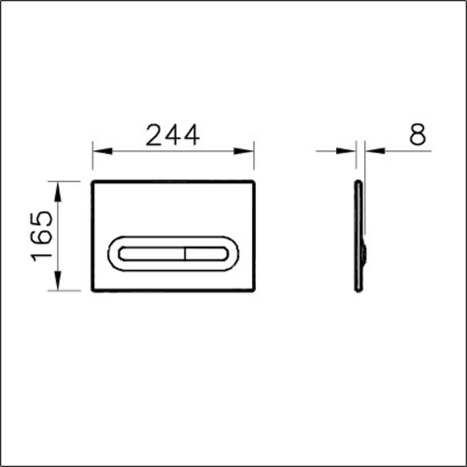

  • 244 x 8 x 165mm

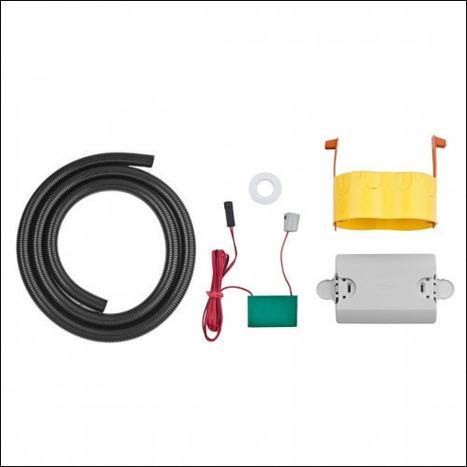

Vitra Electronic Auto Flush Mechanism

  • Manufacturer: Vitra
  • EAN: 8693405356357
  • MPN: 300-1028
  • Brand: Vitra
  • Range: For use in conjunction with Loop T - infrared flush plate
  • Product Type: WC Dual Flush
  • Manufacturer's Guarantee: 5 Years

Click HERE to view a short Installation video demonstrating how to install the VitrA wall frame

Standard shipping in 5 ~ 7 days, Express  options available

CE Certified for installation within the European Union
