Product Description

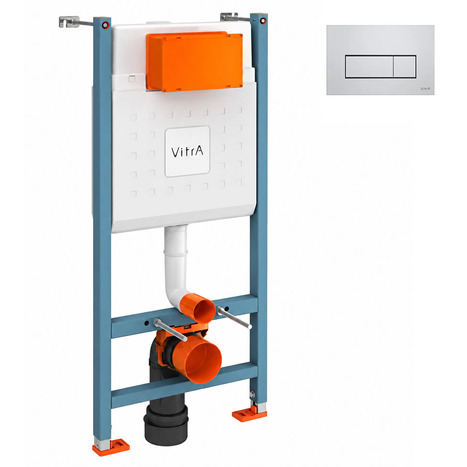

VitrA V-Fix Core Wall-Hung Toilet Frame and Concealed Cistern – 732-5805-01 with  Loop Square dual flush Plate

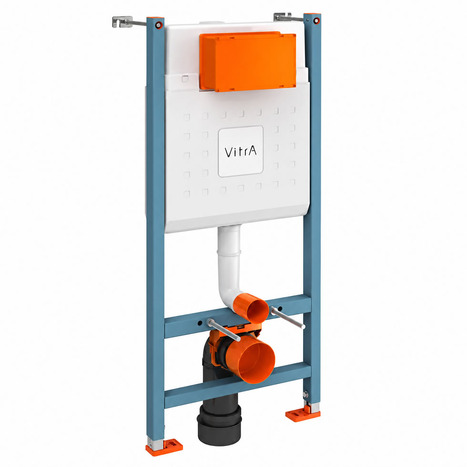

The VitrA V-Fix Core is a strong and dependable concealed support frame designed for installing a wall-hung toilet pan. Combining a robust steel mounting frame with a 12 cm concealed cistern, it allows the working components and pipework to be hidden neatly behind a suitable wall or furniture installation. The result is a clean, contemporary bathroom appearance with more visible floor space and easier access for cleaning around the toilet.

Engineered for secure floor and wall fixing, the V-Fix frame can support a maximum load of up to 400 kg when correctly installed. This makes it suitable for domestic bathrooms, en suites, cloakrooms and other appropriately designed washroom installations.

The cistern incorporates a water-saving dual-flush mechanism, providing a choice between a reduced 3-litre flush and a full 6-litre flush. Operation is from the front through a compatible VitrA dual-flush plate, allowing the cistern to be positioned neatly behind the finished wall.

Although concealed after installation, the internal cistern components remain accessible through the flush-plate opening. The flush plate can be removed for routine inspection and maintenance without disturbing the finished wall surface.

VitrA has tested its V-Fix frames through more than 200,000 flushing cycles, demonstrating the system’s suitability for dependable, long-term use. The product is WRAS approved and is supported by a 10-year manufacturer’s product guarantee, together with up to 30 years’ spare-parts availability.

Please note that the wall-hung toilet pan, toilet seat and compatible VitrA flush plate must normally be purchased separately.

Key features

• Concealed cistern and supporting frame for a wall-hung toilet
• Creates a clean, minimalist bathroom appearance
• Regular-height 112 cm frame
• 12 cm concealed cistern
• Secure floor and wall fixation
• Front-operated flushing mechanism
• Water-saving 3/6-litre dual flush
• Strong steel frame supporting loads of up to 400 kg
• Removable flush plate provides maintenance access
• Tested through more than 200,000 flush cycles
• WRAS approved
• Suitable for connection to water pressures between 0.5 and 10 bar
• Designed for use with compatible VitrA front-operated flush plates
• 10-year manufacturer’s product guarantee
• Up to 30 years’ spare-parts availability

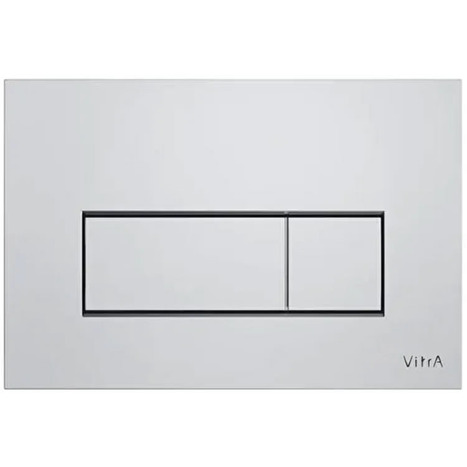

• Loop Square bright chrome dual flush plate, Part No 7740-2380.
• NOTE: We also sell this frame with a Loop Round dual flush plate.

Click HERE to view a short Installation video demonstrating how to install the VitrA wall frame

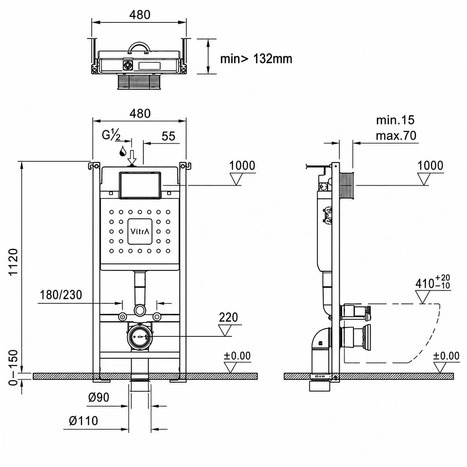

Technical specification

Dimensions should be confirmed against the latest VitrA technical drawing before preparing the wall or enclosure.

Important installation information

The frame must be securely fixed to a structurally suitable floor and wall in accordance with VitrA’s installation instructions. It should then be enclosed using an appropriate load-bearing wall-construction system and finished with the chosen wall covering.

A compatible VitrA front-operated flush plate is required to operate the dual-flush mechanism. The flush plate also forms the removable access point for servicing the concealed cistern.

Installation and connection should be completed by a suitably qualified installer and must comply with applicable UK water, building and electrical regulations.
