Product Description

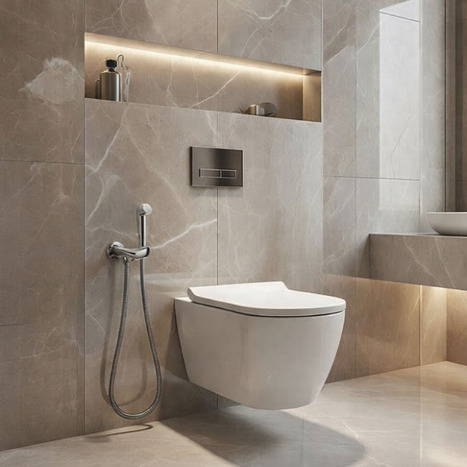

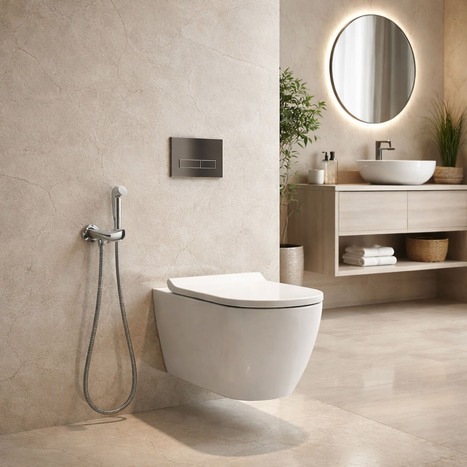

KIT4800: Thermostatic Pre-set Warm Water Bidet Shower Kit with auto shut-off safety valve

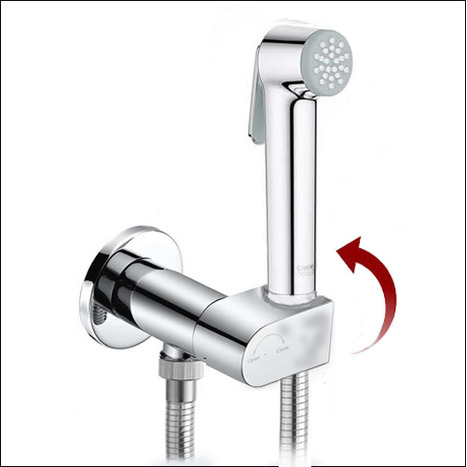

Thermostatic Pre-set Warm Water Bidet Shower Kit. This kit provides absolute peace of mind against accidental leakages, the water is always off when the shower is docked in the valve. To turn the water on to the hose and shower the shower needs to be removed from the dock and the dock turned 90 degrees to the vertical position.  After use to place the showerhead back in the dock the valve dock requires turning back to the horizontal position thus closing the valve and shutting off the water supply

The water temperature is pre-set to the desired operating temperature at the time of installation. The TMV6300 is factory set at 38C we recommend reducing this setting to 32C for bidet showers. The temperature is adjusted by removing the cap and turning the brass head screw in the required direction indicated by the colored temperature markers Kit consists of the following parts.

• Grohe Tempesta F Showerhead and high-pressure ant- tangle hose you may view a short video of the Grohe Tempesta F Trigger spray by clicking HERE

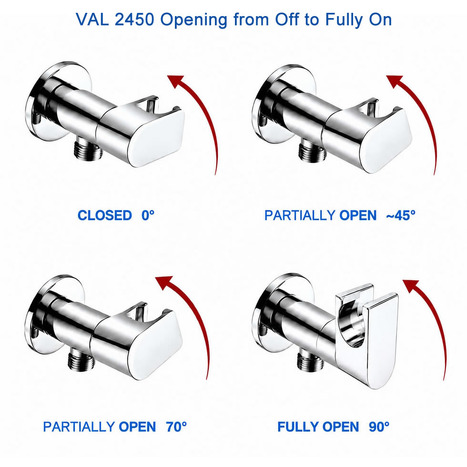

• VAL2450 Auto prompt water shut off safety valve. Click HERE to view a short video demonstrating the operation

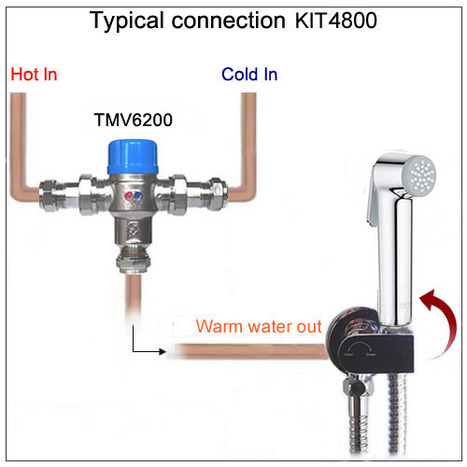

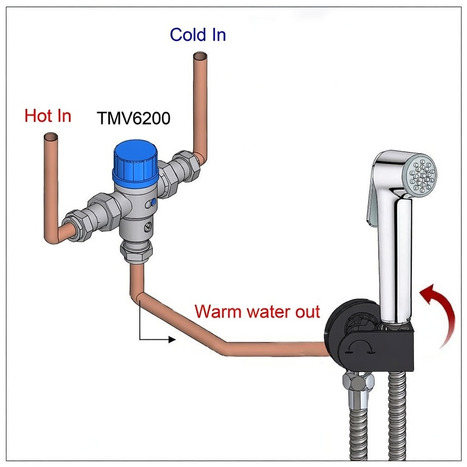

• TMV6300 Thermostatic Mixing Valve (not shown in the main image)
• Requires minimum 1.0 bar water pressure.

This kit provides all the key parts your plumber will require to install this top-quality suite at a discount price.

Please Note: The TMV6200 Thermostatic Mixing Valve is designed to be installed hidden from sight but must be left accessible for adjustment and future maintenance requirements. For the full specification sheet, installation, commissioning and maintenance guidelines for the TMV6300 CLICK HERE

To view what comes in the box and to see basic installation guides click on the View Additional / Larger images under the picture to the left then click next on the large picture to view all of the additional images.

It is essential that your Bidet Sprayer is installed in compliance with the Water Regulations Advisory Service (WRAS) guidelines.If in any doubt please consult a qualified plumber.
