MIX6000: Thermostatic Water Mixer


MIX6000: Hot / Cold, thermostatic controlled water mixer valve. Small modern design, metal casting with a mirror chrome finish.
To view larger images and additional information, click on the image to the left which will the load main page where more detailed information is available.
Includes free next business day guaranteed courier delivery by DHL in mainland U.K. (excludes some remote areas of Scotland, we send by Royal Mail first class post to these areas) & from £9.95 to other countries dependent on location.

Out of stock

Free UK delivery in 2-5 days

Secure shopping

delivery available

Product Description

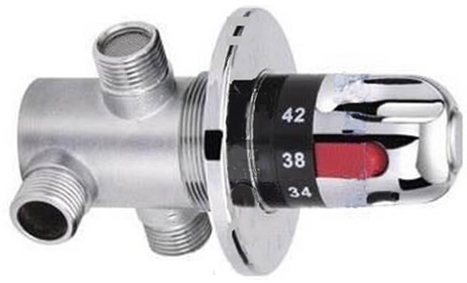

MIX6000: Thermostatic Mixer Valve

Thermostatic controlled Hot / Cold water mixer valve. Small modern design, metal casting with a mirror chrome finish Requires seperate water on /off valve, ideally suited for use with our VAL0800, VAL0850 or VAL1000 water isolating valve. Incorporates wax capsule thermostat technology that maintains a stable temperature, ensuring safe operation for the user.

  • Adjustable calibrated automatic temperature control.
  • Concealed Installation.
  • Temperature setting safety lock.
  • Max hot / cold water pressure ratio 1:15.
  • Automatic Safety Shutdown when cold water pressure fails.
  • Requires minimum 0.5 bar and maximum 4.0 bar of water pressure.
  • May be used with gravity fed hot water and mains cold water systems.
  • Integral check valves on Hot & Cold water inlets
  • 1/2" BSP (15MM) Male threads on Hot / Cold inlets and outlet

For preparing the MIX6000 Thermostatic mixer for installation click this link to view a step by step guide on how to dis-assembly for first fix.

This kit provides all the key parts your plumber will require to install this top quality suite at a discount price.

To view what comes in the box and to see basic installation guides click on the View Additional / Larger images under the picture to the left then click next on the large picture to view all of the additional images.

Replacing the ceramic cartridge: the wall plate can be removed by screwing the back nut and wall plate further down the body to expose the grub screw which retains the cartridge, undo the grub screw using 3mm allen key. The head and cartridge is removed by gently unscrewing head and cartride from the valve body in a straight movement. Protect inside of valve body from construction debris for first fix. When re-inserting the cartridge smear the o rings with washing up liquid to lubricate re-entry in to valve body, BE SURE to line cartridge and body are perfectcly parallel and aligned, apply gentle pressure to re-insert, re-tighten grub screw with allen key.

Warning When refitting the cartridge if you are not perfectly aligned and try to force cartridge in on the scew you will potentially damage the sealing rings which will result in water leakage. Always pressure test after reconnection to ensure no leakage.

WARNING failure to secure cartridge will result in the cartridge being pushed from the valve body under water pressure and potential serious water leakage.
